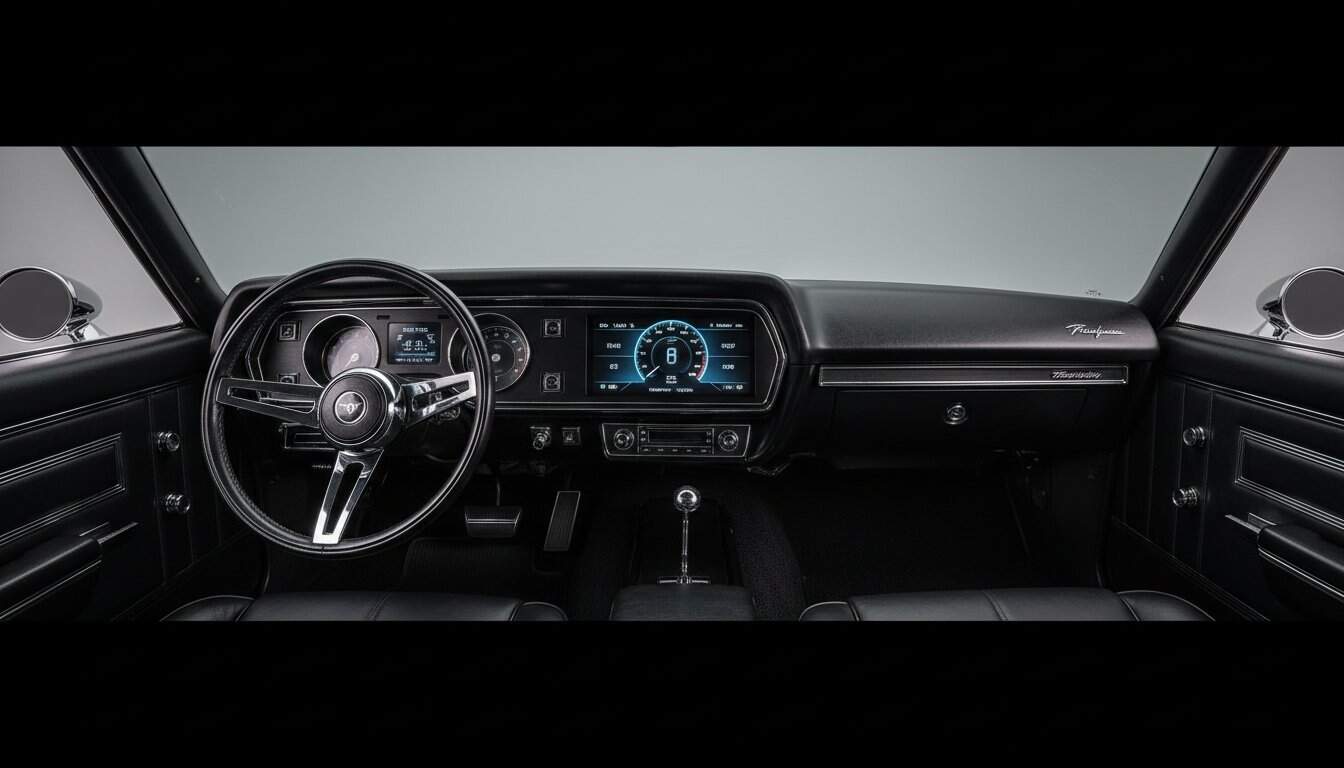

Your factory needle isn’t just lying to you; it’s often hiding a 15% margin of error that could lead to a catastrophic engine failure during a spirited drive. We’ve all felt that pang of anxiety while squinting at a bouncy oil pressure gauge, wondering if the 50-year-old wiring is finally giving up the ghost. You shouldn’t have to choose between a vintage aesthetic and the peace of mind that comes with accurate data. Integrating a digital dash for classic car builds allows you to bridge that gap, offering the precision of modern sensors while honoring the craftsmanship of your original interior.
At the Restomod Academy, we believe every wire you pull is a chance to perfect your vision. This guide shows you how to choose a cluster that fits your dash, wire it using modern bus systems, and monitor critical points like AFR and transmission temperature. You’ll learn to simplify your harness and gain total control over your engine vitals without sacrificing the soul of your ride. Let’s get to work on transforming your cockpit into a professional, data-driven command center.
Key Takeaways
-
Replace inaccurate mechanical cables and friction-prone gauges with high-precision data that supports the demands of modern engine swaps.
-
Identify the right digital dash for classic car projects by weighing the ease of direct-fit clusters against the total creative freedom of universal displays.
-
Navigate technical specifications like OLED sunlight readability and GPS speedometers to ensure your new cockpit is as functional as it is beautiful.
-
Follow a professional wiring roadmap to establish clean grounds and interference-free signals, ensuring your electronics perform with rock-solid reliability.
-
Master the art of fabrication and software calibration to create a custom-finished look that preserves your vehicle’s vintage soul while unlocking modern performance.
Table of Contents
Why Your Classic Car Needs a Digital Dash Upgrade
Grab your tools and take a hard look at that factory instrument cluster. While those chrome-rimmed dials carry an undeniable nostalgic charm, they often fail to tell the full story of what is happening under your hood. Most vintage gauges rely on 50-year-old technology, using mechanical cables and bimetal strips that fatigue over decades of heat cycles. When you are pushing a high-performance build to its limit, you need more than a vague suggestion of oil pressure or water temperature. Integrating a digital dash for classic car projects isn’t just about adding a modern screen; it’s about gaining the surgical precision required to protect your investment.
The transition from analog to digital represents a core pillar of the what is a restomod philosophy. You preserve the iconic silhouette of your vehicle while replacing the failure-prone components of the past with reliable, aerospace-grade electronics. Mechanical speedometers are notorious for cable noise and friction-induced lag, often resulting in a needle that bounces wildly at highway speeds. By moving to a digital system, you eliminate these mechanical weak points entirely. Exploring the history of the dashboard reveals that we have evolved from simple wooden debris shields into sophisticated data hubs, and your classic deserves to benefit from that evolution.

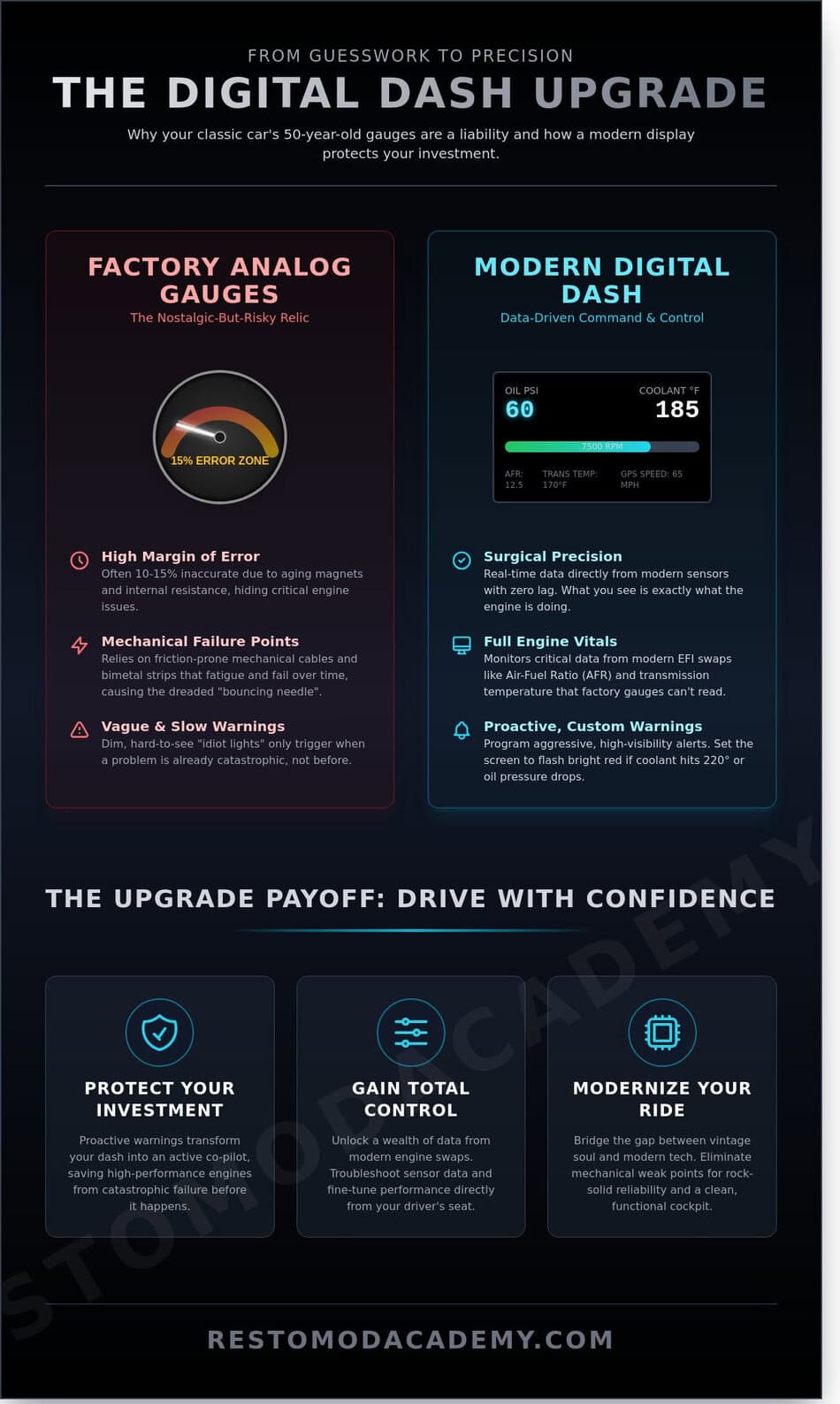

Analog vs. Digital: The Precision Gap
Precision is the difference between a successful cruise and a roadside breakdown. Factory bimetal gauges from the 1960s and 70s are frequently 10% to 15% off-calibration due to internal resistance changes and aging magnets. A digital display provides real-time data with zero lag, ensuring that 60 PSI of oil pressure actually means 60 PSI. This upgrade kills the "bouncing needle" syndrome, providing a rock-steady readout that stays accurate regardless of vibration or cabin temperature.
Modern Engine Monitoring Requirements
If you have performed an LS, Coyote, or Hemi swap, your factory analog gear simply cannot speak the same language as your new ECU. Modern EFI systems generate a wealth of data that old sweep-style gauges cannot display. A digital dash for classic car setups allows you to monitor critical vitals like Air-Fuel Ratio (AFR) and transmission temperature on a single interface. These units act as a diagnostic window, letting you troubleshoot sensor data without plugging in a laptop every time a stumble occurs.
Safety remains the most compelling reason to make the switch. Most vintage clusters only alert you to a problem when it’s already too late, usually via a dim "idiot light" that’s hard to see in direct sunlight. Digital systems allow you to program aggressive, high-visibility warnings. You can set the screen to flash bright red the millisecond your coolant hits 220 degrees or your oil pressure drops below 15 PSI at high RPM. This proactive protection saves engines. It transforms your dashboard from a static display into an active co-pilot, giving you the confidence to drive your classic exactly how it was meant to be driven.
Types of Digital Dash Systems: Finding the Right Fit
Don’t let the simplicity of a 1969 dash layout fool you. Choosing a digital dash for classic car projects requires a clear vision of your final goals. You’re not just swapping bulbs; you’re re-engineering the primary interface between man and machine. Modern engineering standards for automotive instrument cluster design have evolved significantly since the OSEK standards were formalized in 1993, allowing for levels of precision that 1960s mechanical cables simply can’t match. Your choice dictates whether your interior remains a time capsule or transforms into a high-tech command center. Every build has a soul, and the display you choose should reflect that identity.
To make an informed decision, it’s helpful to research the underlying technologies. Online publications like SuggestMeTech provide detailed reviews and comparisons of various tech products, which can give you a better understanding of the components inside these advanced displays.
Direct-Fit Replacement Panels
Grab a system from Dakota Digital or Intellitronix if you want the cleanest possible integration. These units are engineered to bolt directly into your factory 1967 Mustang or 1969 Camaro bezel. They utilize original mounting points, which means you won’t spend 40 hours with a fiberglass kit trying to make a screen look like it belongs. The VHX and HDX series from Dakota Digital offer a 100,000-hour LED lifespan and high-torque stepper motors. While these systems cost between $800 and $1,500, they preserve the vehicle’s structural legacy while providing modern diagnostic accuracy. They’re the gold standard for builders who value a factory-finished look over raw custom flair. You’ll spend less time fabricating and more time driving.
Universal Racing Displays
Performance addicts should look toward Holley EFI, Haltech, or AEM. These aren’t just gauges; they’re data-rich computers. A Holley 12.3-inch Pro Dash offers 1280×480 resolution and allows you to monitor over 200 individual engine parameters. These units excel because they offer high-speed data logging, often at rates exceeding 1,000Hz, and fully programmable shift lights. Installation requires more grit. You’ll need to fabricate a custom mounting plate from 6061 aluminum or 3D-printed ABS plastic. This is the path for the builder who wants total control over every pixel and every alarm threshold. If you’re planning on track days, the ability to review lap times and oil pressure spikes on a clear digital screen is worth the extra fabrication effort. It’s about data-driven confidence on the asphalt.
For those on a budget, tablet-based instrumentation is a viable 21st-century solution. By using a Bluetooth OBDII or CAN-bus dongle paired with apps like RealDash or Torque Pro, you can turn an iPad Mini into a functional digital dash for classic car use. It’s a flexible setup, though it lacks the rugged reliability of hard-wired systems. Alternatively, hybrid gauges offer the best of both worlds. Brands like Speedhut produce analog-style dials with small, integrated digital OLED screens. You get the nostalgic sweep of a physical needle with the digital precision of a GPS speedometer. This hybrid approach is perfect for builders who aren’t ready to let go of the 1950s aesthetic but demand 2024 performance levels. Before you start cutting your original dash pad, take a moment to review our recommended wiring tools to ensure your connections are as solid as your vision.
Choosing the right system is a balance of aesthetics and utility. A custom fabrication project using a universal display might take 15 hours of labor, whereas a direct-fit panel can be installed in a single afternoon. Evaluate your skill level and your timeline before making the purchase. Whether you want the sleek look of a glass cockpit or the classic charm of a hybrid needle, the technology exists to bring your vintage ride into the modern era without losing its spirit.
Selecting Your Digital Instrument Cluster: Key Features
Choosing a digital dash for classic car projects requires more than just picking a screen that fits your bezel. You’re replacing decades of analog engineering with silicon and pixels; you have to get the hardware specs right the first time. Start by evaluating display technology. Most mid-range units utilize high-definition LCD panels, which typically offer brightness levels between 800 and 1,000 nits. This is the minimum threshold you need to ensure the screen remains readable when the sun hits your interior at a 45-degree angle. If you’re building a high-end show car or a convertible, consider OLED options. These displays provide a 1,000,000:1 contrast ratio, meaning the "blacks" are truly black, which prevents that washed-out gray look common in cheaper electronics.
Ditching the mechanical speedometer cable is perhaps the greatest quality-of-life improvement in this process. Those old cables are prone to binding, clicking, and the dreaded needle bounce at low speeds. A GPS-based speedometer is the simplest fix, as it requires zero connection to your transmission. Look for a unit with a 10Hz or 20Hz refresh rate. A 10Hz receiver updates your position 10 times per second, providing a smooth, lag-free sweep that rivals any physical needle. If you prefer a hardwired approach, a Vehicle Speed Sensor (VSS) is the way to go. Most electronic transmissions from 1996 and later already have these built-in, making them a reliable choice for consistent tracking in tunnels or areas with poor satellite reception.
Input capacity is the final pillar of your hardware decision. Your dash must act as the nerve center for your entire powertrain. Ensure the unit has enough dedicated analog inputs for your fuel level, oil pressure, and water temperature. Many builders realize too late that their chosen screen lacks the ports for specialized data like transmission temperature or wideband AFR. Before you buy, map out every sensor you intend to run. You can find detailed breakdowns of how different units handle these loads in our product reviews, where we’ve put these systems through the rigors of long-distance power tours.
Aesthetics and User Interface
Your dashboard is the soul of your interior. If you’re preserving a 1960s aesthetic, choose a system that offers "Retro" themes with digital needles that mimic the original font and color palette of your factory gauges. For track-focused builds, "Modern Race" layouts prioritize a massive horizontal tachometer and programmable shift lights. Don’t overlook the importance of auto-dimming. A display that’s visible at noon will be painfully bright at midnight. Ensure your dash has a dedicated dimming wire that connects to your headlight switch or uses an ambient light sensor to adjust automatically. This small detail prevents eye fatigue during those long hauls back from a Saturday night car meet.
Connectivity and Expansion
Modern restomodding often involves an engine swap, and that’s where CAN bus integration becomes your best friend. This "one wire" protocol allows your digital dash for classic car to communicate directly with an EFI system like a Holley Terminator X or a GM LS-series ECU. Instead of running six different sensor wires through your firewall, the dash pulls RPM, MAP, and CLT data through a single connection. Beyond the engine, ensure your unit has external triggers for traditional 12V signals. You’ll still need hardwired inputs for your turn signals, high beam indicator, and parking brake. If you plan to add forced induction later, verify that the system supports expansion modules for boost pressure and EGT sensors to keep your build future-proof.
The DIY Installation Roadmap: Wiring and Setup
Success in the garage starts with a clean workbench and the right mindset. Before you strip a single wire, gather your essential toolkit: a high-quality ratcheting crimper, a digital multimeter, and marine-grade heat shrink. Don’t rely on cheap electrical tape; it’ll peel and leave a sticky mess within six months. Organizing a digital dash for classic car projects requires a methodical approach to ensure every connection is vibration-resistant and moisture-proof.
Electrical noise is the silent killer of digital precision. If you’ve ever seen a "ghost" reading where your tachometer jumps randomly, you’re likely dealing with signal interference. Prevent this by establishing a common ground. Run a dedicated ground wire from your dash unit directly to a central grounding block on the chassis or the engine block. This eliminates the 0.5-volt fluctuations that plague 40-year-old factory wiring. When you’re integrating modern powerplants, the complexity increases. Refer to the definitive guide to an LS engine swap for professional wiring tips that bridge the gap between vintage steel and modern silicon.
Wiring Harness Management
Begin by mapping your original vehicle harness. Label every wire before you cut anything. Focus on the "Big Three" connections: constant 12V power for memory, switched ignition power to wake the unit, and a solid chassis ground. Route your sensor wires at least 6 inches away from high-voltage components like spark plug wires or the alternator. This physical separation prevents electromagnetic interference from scrambling the data sent to your digital dash for classic car display.
Sensor Installation and Calibration
Your old analog senders won’t cut it. Replace those vintage oil and temperature units with modern high-accuracy transducers. These solid-state sensors typically offer a 1% tolerance, providing data far more reliable than the original 1960s bimetallic strips. One of the most common hurdles is the fuel sender resistance mismatch. While a classic GM tank often uses a 0-90 ohm sweep, many aftermarket units expect a 240-33 ohm signal. Most modern digital dashes allow you to program a custom ohm scale to solve this mismatch in under two minutes.
Finalize your setup by calibrating the speedometer. You have two primary options: GPS synchronization or the traditional 1-mile drive method. For the 1-mile drive, you’ll trigger the "learn" mode on your dash, drive exactly 5,280 feet, and stop. The system counts the pulses from your transmission sensor and calculates your tire diameter and gear ratio with 99.9% precision. This ensures your speed readings stay accurate even if you swap to 18-inch wheels later.
Ready to master more advanced automotive electronics? Enroll in our Restomod Academy courses to turn your project vision into a high-performance reality.
Mastering the Finish: Integration and Customization
The hardware is mounted and the wiring is tucked, but the project isn’t finished until the digital interface feels like a native part of your machine. A digital dash for classic car builds shouldn’t look like an afterthought. It requires a seamless marriage of 1960s steel and 21st-century silicon. Your goal is to eliminate any gaps that betray the modification, ensuring the screen sits at a depth that mimics original analog clusters.
Start by fabricating a custom bezel. Don’t rely on universal brackets that leave unsightly voids. Use a 1/8-inch sheet of textured ABS plastic or a piece of 6061 aluminum to create a faceplate that contours to your original dashboard opening. This piece acts as the bridge between eras. If you’re aiming for a high-end finish, check our recommended gear for the specific soldering and crimping tools needed to ensure your connections are as permanent as the metal work itself. Poorly crimped signals lead to flickering displays, which ruins the premium feel of a custom build.
Software configuration is where you breathe life into the hardware. You must set aggressive warning thresholds to protect your investment. Configure a visual alert for coolant temperatures when they hit 220 degrees Fahrenheit and a flashing red warning for oil pressure if it drops below 15 PSI at hot idle. These digital safeguards provide more protection than a needle ever could. Once the limits are set, validate your data. Drive the car at a steady 30, 45, and 60 MPH while comparing the display to a high-accuracy GPS source. If the numbers don’t match within a 1 percent margin, adjust your speed sensor pulse count immediately.
Clean Interior Integration
Achieving a factory-installed look often requires modern fabrication techniques. Many builders now use 3D printing with PETG filament to create complex, angled bezels that perfectly transition from a flat screen to a curved dash pad. If you prefer a traditional approach, smoked acrylic can hide the screen edges when the ignition is off, creating a "blackout" effect that preserves the vintage aesthetic. Always design your mounting system with a "service loop" of extra wire. This allows you to pull the cluster out 4 or 5 inches for future firmware updates without straining the harness.
Advanced Programming Tips
Take advantage of the logic built into your digital dash for classic car software by setting up progressive shift lights. Don’t just set a single light at 6,000 RPM. Program a sequence where green LEDs appear at 5,000 RPM, yellow at 5,500, and a flashing red at 6,200. This gives you a peripheral sense of the power curve without taking your eyes off the road.
Create two distinct display pages: a "Street" page and a "Track" page. The street view should prioritize fuel level, odometer, and turn signal indicators. The track view should strip away everything except a massive tachometer, oil pressure, and water temperature. This level of customization is the ultimate expression of the "Built, Not Bought" philosophy. It proves that you haven’t just installed a part; you’ve engineered a cockpit that responds to your specific driving needs. There is an immense sense of pride when you turn the key and see a startup screen you programmed yourself, displaying the logo of your own personal garage or build project.
Drive Your Vision Into the Next Era
Upgrading your cockpit is more than just a cosmetic change; it’s an investment in the longevity and safety of your build. By selecting a system that offers 10 or more real-time sensor inputs, you gain a level of diagnostic precision that 50-year-old analog gauges simply cannot match. Integrating a digital dash for classic car projects allows you to monitor critical vitals like air-fuel ratios and transmission temperatures with 100% digital accuracy. Whether you’re navigating a complex 12-volt wiring harness or customizing your layout for a factory-plus look, the process is a valuable learning opportunity that cements your status as a true builder.
Don’t let the complexity of modern electronics stall your progress in the garage. Success comes from preparation and having the right blueprints at your side. Our platform provides 35+ expert-led tutorials for DIY builders and curated lists of 50 high-performance components to ensure your project stays on track. You can also tap into 15 years of community-driven restomod advice to solve even the most stubborn technical hurdles. Download The Ultimate Restomod Guide to plan your complete interior overhaul today and turn that vision into a reality. Your car’s legacy is waiting for its next chapter, and you’ve got the tools to write it.
