TREMEC T56 Magnum: The Ultimate 6-Speed Guide for Restomod Builders (2026)

What if the most intimidating modification to your classic muscle car is actually the one that finally makes it feel like a modern supercar? You’ve likely spent hours staring at your floor pan; you’re weighing the raw 700 lb-ft torque capacity of a tremec t56 magnum against the fear of cutting into original metal. It’s a common crossroads for every serious builder who wants to bridge the gap between vintage soul and 21st-century performance. You want the strength of a transmission born from the DNA of the Viper and ZR1, but you don’t want to sacrifice your car’s structural integrity or deal with persistent driveline vibrations.

I understand the hesitation that comes with high-stakes fabrication. This guide will show you how to conquer those installation anxieties and select the perfect gear set to transform your driving experience into something truly world-class. We’ll break down the critical differences between close-ratio and wide-ratio options, address tunnel clearance head-on, and provide the technical roadmap you need to achieve mechanical precision. Let’s move past the indecision and start building the high-performance restomod you’ve always envisioned.

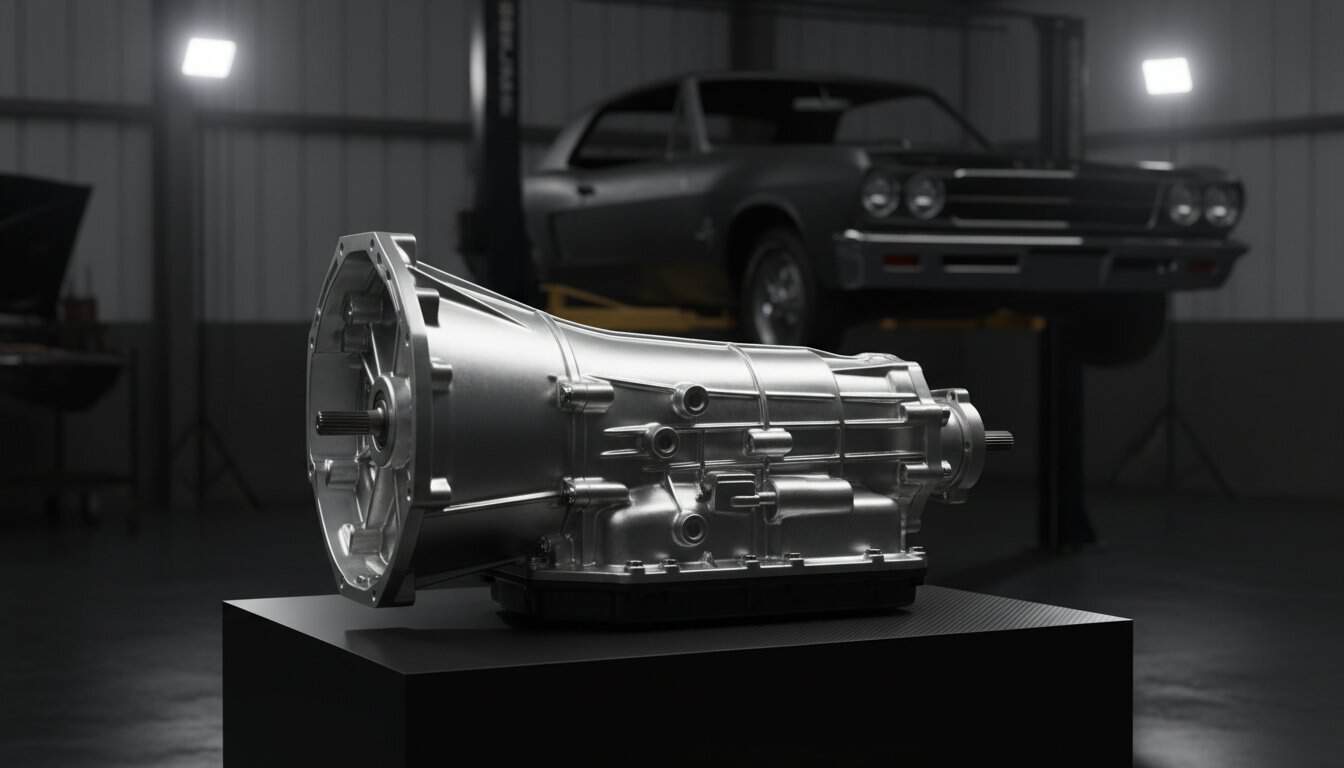

Understanding the Pedigree of the TREMEC T56 Magnum

Step into any professional workshop today, and you’ll see why the tremec t56 magnum has become the cornerstone of high-end pro-touring builds. This gearbox isn’t just an evolution of the original 1990s units found in Camaros and Cobras; it’s a complete reimagining of manual performance. By studying the TREMEC Corporation History, you can see how the company transitioned from producing standard utility transmissions to engineering the most robust manual systems on the planet. The Magnum takes that heritage and packages it into a universal aftermarket platform that solves nearly every headache associated with high-horsepower swaps.

If you’re following the definitive guide to an LS engine swap, you know that modern crate engines easily push past the limits of vintage four-speeds. The Magnum is specifically engineered to handle a massive 700 lb-ft of torque, providing a safety margin that allows you to drive with confidence. It’s the premier choice for builders who prioritize reliability as much as they do raw acceleration, acting as the structural foundation for a car that can handle a cross-country cruise and a weekend track day without breaking a sweat.

The TR-6060 Connection

The secret to the Magnum’s strength lies in its DNA. It’s essentially an aftermarket version of the TR-6060, the heavy-duty transmission used in factory supercars like the Dodge Viper and the Shelby GT500. Unlike older manual generations, this unit features significantly larger gears and triple-cone synchronizers that allow for smooth, precise gear changes even at a blistering 7,800 RPM. Don’t fall into the trap of thinking a salvaged OEM unit is just as good. Factory transmissions are often tied to specific vehicle architectures, whereas the tremec t56 magnum is a purpose-built aftermarket solution with superior internal components and a universal case design.

Versatility in Shifter Placement

One of the biggest hurdles in any restomod project is making the mechanical components fit the aesthetic of a classic interior. The Magnum solves this with incredible flexibility. The casing features multiple shifter locations, allowing you to move the gear lever forward or backward to line up perfectly with your original console. You can even utilize a reversible offset lever to fine-tune the position within an inch of your target. This level of adaptability means you spend less time hacking up your floor pan and more time perfecting the ergonomics of your cockpit. It’s a thoughtful design that respects the vintage character of your machine while providing modern precision.

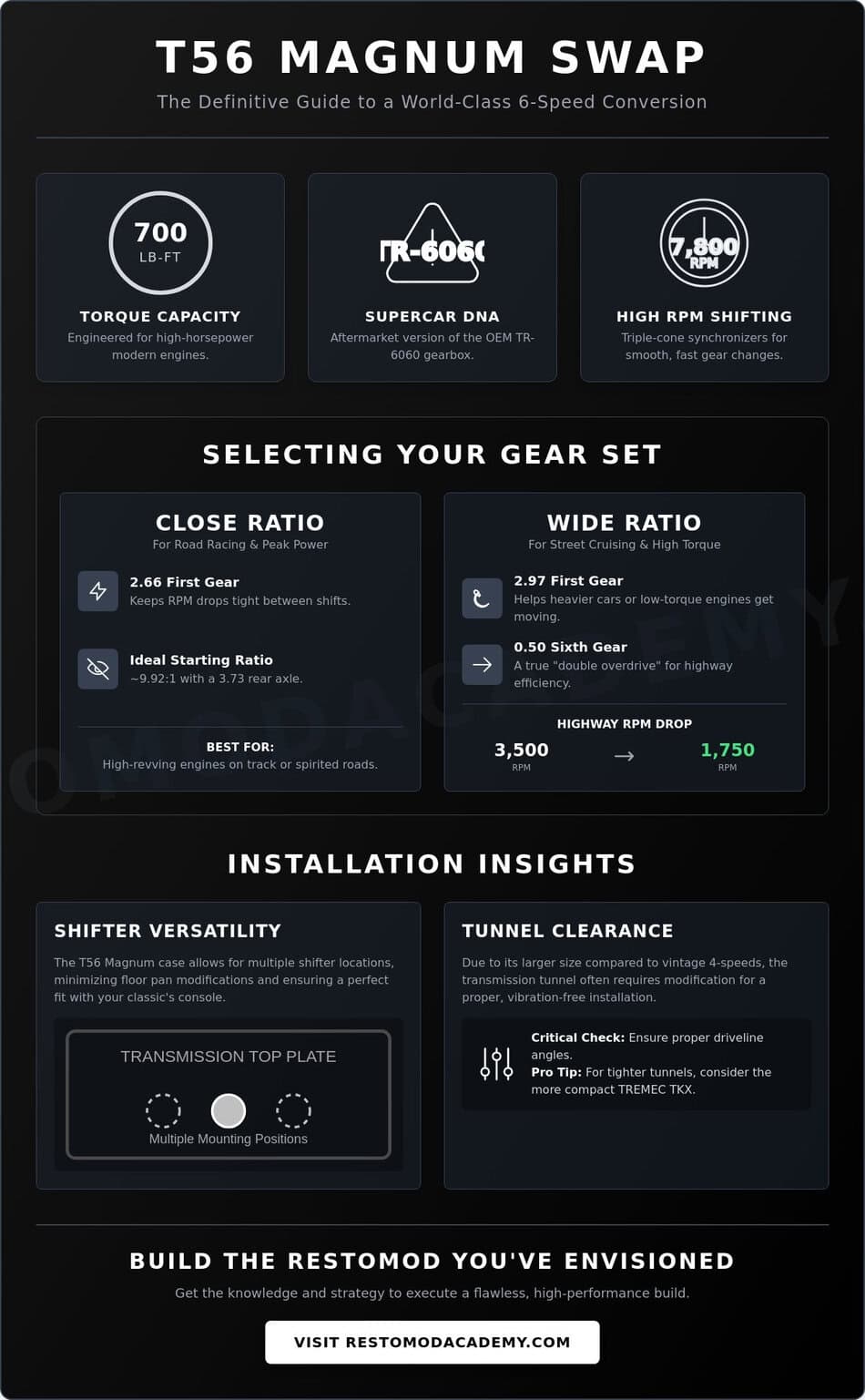

Selecting the Right Gear Ratios for Your Performance Goals

Mastering the mechanical leverage of your drivetrain is the difference between a car that feels like a precision instrument and one that feels mismatched. Choosing the gear sets for your tremec t56 magnum requires a strategic look at your engine’s power curve and how you intend to use the vehicle. It isn’t just about having six speeds; it’s about ensuring every shift keeps you in the meat of your torque band while providing a relaxed highway cruise that preserves your engine’s life. If you’re building for the long haul, getting these ratios right is as critical as the engine build itself.

To get this right, you must consider your starting ratio. This is the product of your first gear multiplied by your rear axle ratio. For most street-driven muscle cars, a starting ratio between 9:1 and 10:1 is the sweet spot for effortless take-offs without excessive wheel spin. If you’re running a 3.73 rear gear, the 2.66 first gear in the close-ratio box gives you a 9.92 starting ratio, which is nearly perfect for a high-torque LS or Coyote build. You can find the full T56 Super Magnum technical specifications to help verify these numbers against your specific rear-end setup and tire height.

Close Ratio vs Wide Ratio Breakdown

The close-ratio set, featuring the 2.66 first gear, is designed for road racing and high-speed stability. It keeps the RPM drops between gears tight, ensuring the engine stays at peak performance during spirited driving. On the other hand, the wide-ratio set uses a 2.97 first gear, making it the superior choice for heavier vehicles or engines with less low-end torque. The real magic of the wide-ratio unit often lies in its deep 0.50 sixth gear. This creates a double overdrive that can drop your cruising RPM by half, turning a screaming 3,500 RPM highway slog into a calm 1,750 RPM glide.

The Relationship Between Torque and Gearing

Don’t make the mistake of over-gearing a high-displacement engine. Modern powerhouses produce immense low-end torque, meaning they don’t need a massive mechanical advantage to get moving. The 2.66 ratio provides a linear power delivery that prevents the car from feeling twitchy or running out of gear too quickly in city traffic. If you’re unsure how these ratios will interact with your specific tire height, our recommended gear guides offer deeper insight into the math behind the machine. Choosing the wrong ratio can turn a 700 lb-ft beast into a traction-limited nightmare, so take the time to calculate your needs before you bolt the case to the bellhousing.

T56 Magnum vs TKX: Which TREMEC Fits Your Build?

Choosing between the tremec t56 magnum and the TKX 5-speed is the most frequent debate I see in the workshop. It isn’t just a matter of counting gears. You have to weigh the physical constraints of your car’s chassis against your long-term horsepower goals. While both units share a high-performance pedigree, they serve very different masters. The Magnum is a robust 135-pound beast designed for absolute dominance, while the TKX is a 100-pound precision tool engineered for ease of fitment. Before you commit, look honestly at your project’s floor pan and your engine’s output.

The decision often comes down to the trade-off between installation labor and ultimate capability. The Magnum offers a massive 700 lb-ft torque capacity, providing a significant buffer for high-output crate engines. However, that strength comes in a physically larger case that often demands a sawzall and a welder to clear classic transmission tunnels. If you’re already deep into the definitive guide to an LS engine swap, you might find the extra effort worthwhile to support the massive torque of a modern V8. If you’re looking for supporting hardware like bellhousings or crossmembers, check our recommended gear for vetted components that match these units.

The Case for the TKX 5-Speed

Respect the original lines of your car by considering the TKX if tunnel surgery feels like a bridge too far. This 5-speed unit was specifically designed to fit into tight A-body, F-body, and Mustang tunnels with little to no modification. It still offers a respectable 600 lb-ft torque rating, which is more than enough for the vast majority of street-focused restomods. You save 35 pounds off the total weight of the car, and the simplified installation can shave days off your build timeline. It’s the logical choice for the builder who values a clean, factory-appearing interior without the need for a custom-fabricated center console.

Why the T56 Magnum Remains the King

Accept the challenge of the tremec t56 magnum if your vision includes high-speed touring or competitive track days. The psychological and performance edge of having a true double overdrive cannot be overstated. While the TKX gives you one highway gear, the Magnum gives you two, allowing you to stay in the power band longer or drop the engine to a whisper at 80 miles per hour. It is the ultimate way to future-proof your build. If you decide to add a supercharger or a twin-turbo setup later, you won’t have to pull the transmission again to handle the increased load. It’s a “one and done” investment for the serious creator who refuses to compromise on strength or versatility.

The Practicalities of Installation: Fitting a 6-Speed in a Classic Tunnel

Grab your cutting wheel and take a deep breath before you begin the physical installation. Fitting a tremec t56 magnum into a vintage chassis is a surgical procedure that requires a clear plan and a willingness to reshape metal. This transmission is a powerhouse, but its physical volume is significantly greater than the Muncie or Toploader it’s likely replacing. In F-body and A-body platforms, the most common interference points occur at the top of the tunnel where the case flares out and at the rear where the tailhousing meets the floor. You aren’t just making room for the gearbox; you’re ensuring the entire drivetrain sits at the correct angle to prevent mechanical failure down the road.

Achieving a vibration-free ride starts with the relationship between your engine mounts and your transmission crossmember. If you mount the engine too high to avoid cutting the floor, you’ll create a steep driveline angle that leads to persistent U-joint vibration at highway speeds. This is a common pitfall for builders who are afraid of the sawzall. Refer to the definitive guide to an LS engine swap to understand how oil pan clearance and hood height influence your transmission’s final resting place. Precision here is the difference between a car that feels like a factory machine and one that feels like a project.

Measuring Driveline Geometry

Use a digital inclinometer to verify that your engine and pinion angles are parallel within a degree or two. Don’t rely on your eyes or a standard bubble level for this task. You must account for the rake of the car and the specific height of your rear suspension. If the tremec t56 magnum sits too low, you risk scraping the case on speed bumps; if it sits too high, you’ll have to cut a massive hole in your floor. Finding that middle ground requires patience and multiple test-fits before you burn in your final crossmember mounts.

Tunnel Modification Strategies

Decide early if you’ll perform a local massage with a hammer or commit to a full tunnel replacement kit. For many GM A-body cars, a full tunnel surgery is the only way to maintain a factory-correct driveline angle while keeping the transmission tucked high enough for ground clearance. Once the metalwork is finished, use high-quality seam sealer and sound-deadening mats to keep cabin heat and noise at bay. If you need a list of the right tools for this job, our recommended gear section highlights the fabrication essentials every builder should own. Taking the time to seal and insulate your new tunnel ensures that your modern 6-speed conversion doesn’t compromise the comfort of your interior.

Ready to master the art of the swap? Explore our comprehensive gear guides to find the specialized tools and components that make these complex installations manageable for any dedicated builder.

Optimizing Your Restomod Drivetrain Strategy

Finalizing your drivetrain is the last hurdle before you can finally experience the 700 lb-ft capability of your tremec t56 magnum. This stage requires a meticulous approach to the clutch and release system. Since the Magnum utilizes a 26-spline input shaft, your old 10-spline hardware won’t work. Select a flywheel and clutch combo that can handle your engine’s peak torque without turning every stoplight into a leg workout. A high-quality organic or dual-friction disc provides the smooth engagement needed for a street-driven car while maintaining the grip required for spirited driving.

This integration is the essence of what is a restomod; you’re taking the raw power of a vintage machine and refining it with the precision of modern engineering. Don’t overlook the importance of the pilot bearing and bellhousing alignment. If these aren’t perfectly centered, you’ll face premature wear on the input shaft bearings and inconsistent shifting. Take the time to dial-indicate your bellhousing to ensure it’s within the manufacturer’s tolerance, usually 0.005 inches or less.

Hydraulic Clutch Conversion

Forget about trying to clear the massive Magnum case with a traditional mechanical Z-bar linkage. There simply isn’t enough room in a classic chassis. Transitioning to a hydraulic release bearing is a logical step that offers a much more consistent pedal feel. Match your master cylinder bore size to the requirements of your slave cylinder to avoid a pedal that’s either too stiff or too long. Most builders find that a 3/4-inch bore provides the best balance. Route your hydraulic lines away from exhaust headers to prevent fluid boiling, and mount your reservoir in a discreet location to keep the engine bay looking period-correct.

Breaking in Your New Transmission

Resist the urge to dump the clutch the moment you pull out of the garage. Your new synchronizers and gears need a dedicated break-in period of roughly 500 miles to seat properly. During this time, focus on moderate shifting and varied speeds. This patience pays off in the form of a transmission that shifts like silk for decades. Perform your first fluid change at the end of this break-in period to remove any microscopic assembly debris. For a detailed look at the best lubricants for high-performance gearboxes, explore our product reviews. Remember that the tremec t56 magnum typically requires about 3.5 to 4 quarts of fluid, and it’s vital to use the specific friction-modified lubricants recommended by the manufacturer to protect the internal carbon-lined rings.

Transform Your Vision into Mechanical Reality

Building a world-class restomod is about more than just matching high-performance parts; it’s about the deliberate pursuit of engineering harmony. You now understand how the tremec t56 magnum provides the structural backbone for a high-horsepower build, offering a 700 lb-ft torque capacity that turns a vintage chassis into a modern powerhouse. By selecting the right gear ratios and mastering the metalwork required for a clean installation, you’ve moved from the planning phase to the threshold of a truly transformative driving experience.

Don’t let the complexity of fabrication or drivetrain geometry stall your progress. Every challenge in the workshop is an opportunity to sharpen your skills and deepen your connection with your machine. If you’re ready to take the next step toward a professional-grade finish, Master your build with The Ultimate Restomod Guide. Our expert mentor-led instruction and comprehensive project blueprints are designed specifically to ensure your DIY success and safety. Pick up your tools, trust your measurements, and keep pushing forward. Your dream build is within reach, and the reward of that first perfect shift is waiting for you.

Frequently Asked Questions

Does the TREMEC T56 Magnum require a specific type of transmission fluid?

TREMEC explicitly recommends using TREMEC HP MTF oil for the tremec t56 magnum to ensure long-term performance. This fluid is specifically formulated to protect the carbon-lined synchronizer rings found inside the gearbox. Since the transmission ships dry from the factory, you’ll need to have roughly 4 quarts ready before your first start-up. Avoid using standard heavy gear oils that can degrade the internal friction materials.

Will I have to cut my floor pan to fit a T56 Magnum in a 1969 Camaro?

Yes, you should expect to perform significant metalwork on your floor pan to fit this 6-speed into a first-generation Camaro. The case of the Magnum is physically much larger than the original Muncie 4-speed or even the modern TKX 5-speed. You’ll typically need to cut out the top of the transmission tunnel and install a high-clearance tunnel patch to maintain the correct driveline geometry and ground clearance.

What is the torque rating of the T56 Magnum compared to a standard T-56?

The tremec t56 magnum carries a massive 700 lb-ft torque rating, which is a substantial upgrade over the original production T-56 units. Most older factory transmissions were rated between 330 and 450 lb-ft depending on their original vehicle application. This increased capacity makes the Magnum the definitive choice for builders using high-output modern crate engines that would easily overwhelm a stock 1990s gearbox.

Can I use my original mechanical speedometer with a T56 Magnum?

You can use your original mechanical speedometer because the Magnum case is designed with both mechanical and electronic speedometer outputs. This dual-capability is a major advantage for restomod builders who want to maintain a vintage interior aesthetic while enjoying modern drivetrain performance. You simply thread your existing speedometer cable into the mechanical port on the tailhousing, ensuring your dashboard remains functional without requiring expensive electronic conversion boxes.

What is the difference between a T56 Magnum and a Magnum XL?

The difference lies in the tailhousing design; the Magnum XL features an extended tailhousing and an integral shifter for specific modern vehicle architectures. While the standard Magnum is a universal unit perfect for classic restomods, the XL is engineered for cars like the S197 Mustang or 5th Gen Camaro. The XL version eliminates the sloppy remote shifter linkages found in those modern platforms, providing a more direct and precise shifting experience.

Do I need a 26-spline clutch disk for the T56 Magnum installation?

Yes, you must use a 26-spline clutch disk to match the high-strength input shaft of the T56 Magnum. Most vintage transmissions utilized a 10-spline input shaft, which is incompatible with the modern 26-spline design. This upgrade isn’t just about fitment; the increased spline count provides more surface area for torque transfer, which is essential for managing the 700 lb-ft capacity that this transmission is built to handle.

How does the T56 Magnum improve fuel economy in a classic car?

The T56 Magnum improves fuel economy by offering two distinct overdrive gears that drastically reduce your engine’s RPM at highway speeds. If you select the wide-ratio set with a 0.50 sixth gear, your engine will turn at half the speed compared to a traditional 1:1 fourth gear. This lower RPM range reduces fuel consumption and minimizes engine wear, making your classic muscle car a much more capable long-distance cruiser.

Is the T56 Magnum compatible with both Ford and GM engine blocks?

The T56 Magnum is manufactured in specific versions tailored for both Ford and GM engine patterns. While the internal gear sets are identical, the front plate and input shaft dimensions are unique to each manufacturer’s requirements. It’s vital to select the correct model for your specific engine block to ensure the pilot bearing, bellhousing, and clutch release system all align perfectly during the assembly process.
