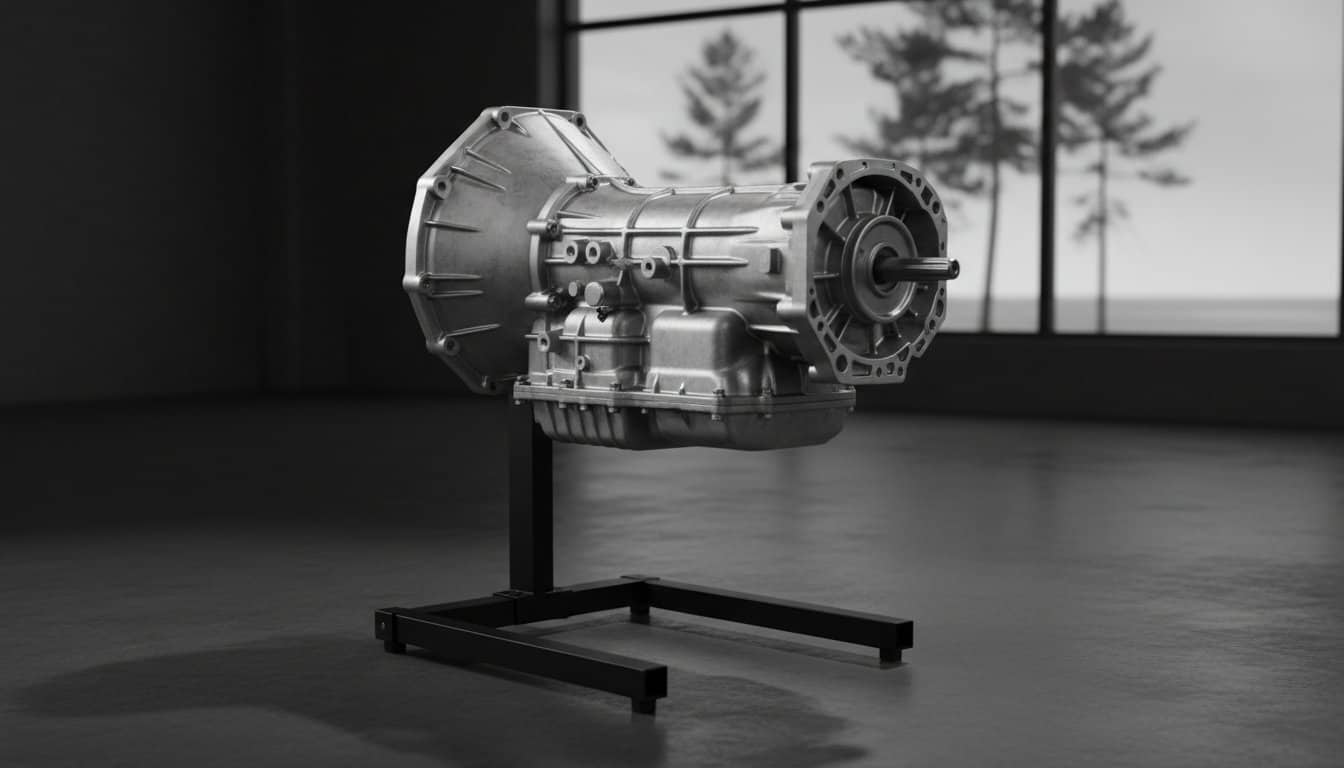

TREMEC T56 Magnum Guide: The Ultimate 6-Speed for Your Restomod (2026)

Your transmission is the mechanical bridge between a vintage aesthetic and modern supercar performance, and choosing the wrong one is the fastest way to ruin a high-end build. You want the visceral thrill of a manual shift, but the fear of major structural modifications to your floorpan or the complexity of a hydraulic clutch conversion is a real hurdle. It’s a common crossroads where many enthusiasts hesitate, caught between the desire for 2026-level reliability and the preservation of their car’s legacy.

This guide is your masterclass in drivetrain engineering, designed to help you master the technical nuances of the t56 magnum with the precision of a seasoned builder. You’ll gain a clear understanding of how to match the 2.66 or 2.97 gear sets to your specific engine and rear-end ratio, ensuring your vision translates into a high-performance reality. We’ll break down the $3,545 entry price and provide a roadmap for an installation that handles 700 lb-ft of torque without compromising your car’s structural integrity.

The TREMEC T56 Magnum: The Kingpin of Performance Manuals

The foundation of a great restomod isn’t just the engine; it’s how you put that power to the pavement. Choosing a t56 magnum means you’re investing in a lineage of speed that began with the Borg-Warner T-56 history and evolved into a specialized performance tool. While the original T56 was a revolutionary six-speed for its time, it had limits. The industry moved toward the TR-6060 for factory supercars, and eventually, TREMEC combined the best of both worlds to create the Magnum. It’s the ultimate solution for builders who refuse to choose between street manners and track-day toughness.

In 2026, high-end builds often feature forced induction or high-displacement crate engines that easily exceed 500 lb-ft of torque. This is why the 700 lb-ft torque capacity of the t56 magnum is the safety margin every serious project requires. You don’t want to be the builder who saves a few dollars on a used OEM pull-out only to have it shatter under the stress of a modern power plant. A brand new Magnum offers a clean-slate internal design, a 26-spline input shaft, and a larger 31-spline output shaft that a recycled gearbox simply can’t match.

To see the gearbox in action and hear the crisp shifts for yourself, watch this first drive experience:

The TR-6060 Connection: OEM Strength in an Aftermarket Case

The secret to the Magnum’s success lies in its TR-6060 internals. Engineers packed the gearbox with triple-cone synchronizers on the first through fourth gears, which eliminates the “notchy” feel common in older manual boxes. These upgrades ensure that every gear change feels mechanical and deliberate, even at high RPMs. The TR-6060 heritage ensures your 2026 build benefits from the same robust architecture found in factory supercars while maintaining the mounting flexibility needed for a classic car. If you’re planning a high-output project, check out the definitive guide to an LS engine swap to see how this transmission completes the package.

Magnum vs. Magnum XL: Knowing the Difference

Don’t make the mistake of ordering the wrong case for your floorpan. The standard Magnum is the universal choice for most restomods because it features multiple shifter locations, allowing you to line up the handle with your factory console. It fits the tight confines of 1960s and 70s muscle cars with minimal surgery. The Magnum XL variant is a different animal. It features an extended tailshaft specifically designed for late-model swaps like the S197 Mustang. Stick with the standard version for your vintage build to keep your fabrication work focused on performance rather than fixing a mistake.

Selecting Your Gear Ratios: Close Ratio vs. Wide Ratio

Choosing the right internal ratios for your t56 magnum is where the art of the build meets the science of physics. It’s the difference between a car that bogs at every green light and one that pulls like a freight train through every corner. You aren’t just buying a gearbox; you’re tailoring the power delivery of your machine to match your specific driving goals. Whether you’re aiming for a 200 mph standing mile or a comfortable cruise to a local show, your choice of first gear and overdrive will define the soul of the car.

The 2.66 Gear Set: For the Performance Purist

The 2.66 close-ratio gear set is the gold standard for high-horsepower builds where traction is a constant battle. If your engine produces over 600 horsepower, a shorter first gear often results in nothing but smoke and wasted rubber. The 2.66 first gear allows you to stay in the throttle longer, building momentum without immediate wheelspin. This set typically features a .63 sixth gear, which is the sweet spot for performance cruising. At 80 mph with a 3.73 rear gear and a 26 inch tire, you’ll sit comfortably at roughly 2,150 RPM, keeping the engine right in the heart of its power band for instant passing power.

The 2.97 Gear Set: For the Street and Strip

If you’re building a heavy cruiser or a street-focused machine, the 2.97 wide-ratio set is your best ally. This deeper first gear makes a 3,800 lb classic feel 500 lbs lighter, providing that neck-snapping acceleration off the line that manual drivers crave. It’s an excellent match for engines with a narrower torque curve, such as a high-revving small block. To understand how this interacts with modern power delivery, review the definitive guide to an LS engine swap. This version usually comes with a massive .50 sixth gear. This double-overdrive is a game changer for fuel economy; that same 80 mph cruise drops to approximately 1,700 RPM, allowing for quiet, efficient long-distance travel.

Match your transmission choice to your rear-end gear ratio with precision. If you’re running a 3.55 or 3.73 rear gear, the 2.97 wide-ratio t56 magnum provides an aggressive launch without sacrificing the highway experience. However, if you’ve stepped up to a 4.11 or 4.30 rear end, the 2.66 close-ratio box prevents first gear from becoming uselessly short. Always calculate your final drive before pulling the trigger on a purchase. If you need help visualizing how these components integrate into a full vehicle plan, our Premium Project Blueprints offer a detailed look at proven drivetrain combinations that work the first time.

Fitting a 6-Speed into a Classic: The Restomod Reality

Installing a t56 magnum into a car originally designed for a three speed manual or a slender automatic is a wake up call for many builders. While a vintage Muncie or T5 gearbox is relatively compact, the Magnum is a heavy weight unit measuring roughly 33 inches long and weighing approximately 135 pounds dry. It requires a different approach to spatial management. You aren’t just swapping parts; you’re re-engineering the center of your vehicle to accommodate a modern, high torque powerhouse. This is the core of the restomod philosophy, where we sacrifice original floorpan purity for 2026 levels of performance and drivability.

One of the greatest assets of the t56 magnum is its versatility in shifter placement. Unlike older transmissions that lock you into a single exit point, the Magnum offers three distinct mounting locations on the case. This flexibility allows you to keep your factory console and bucket seats without having to hack a massive, unsightly hole in your interior. Whether you’re working on a 1969 Camaro or a 1965 Mustang, you can adjust the shifter position to emerge exactly where your hand naturally falls. If you’re still planning the layout of your cabin, our recommended gear list includes the specific shifter handles and offset levers that make these tight fits possible.

Mounting the unit requires a platform specific crossmember. Companies like American Powertrain or Silver Sport Transmissions have simplified this by creating bolt-in solutions for GM A-bodies, Ford Foxes, and Mopar E-bodies. These kits often include the necessary hardware to drop the transmission down slightly, which is vital for maintaining proper clearance. Don’t try to reuse your factory 1960s crossmember; the mounting point for a six speed is significantly further back than a four speed, and a homemade bracket rarely provides the rigidity needed for a 700 lb-ft torque rating.

Tunnel Modifications and Clearance

Prepare yourself for some metalwork. In most 1960s and 70s platforms, the transmission tunnel is too narrow to house the Magnum’s robust case. You’ll likely need an angle grinder and a welder to expand the tunnel. When cutting, always maintain structural integrity by reinforcing the floor braces. This isn’t just about making room; it’s about ensuring the chassis stays rigid under the stress of high performance driving. For those new to the garage, our what is a restomod guide outlines the balance between preservation and necessary modification.

Driveline Angles and Vibration Management

Success is measured by the lack of vibration at 80 mph. You must adhere to the 3-degree rule, ensuring your U-joint working angles are within a tight tolerance to prevent premature wear and annoying driveline hum. Proper alignment starts with your transmission mount. While polyurethane mounts offer superior strength for high horsepower builds, they can transfer more noise into the cabin. Rubber mounts provide a smoother ride for long distance cruisers, but they may allow too much engine twist in a track focused machine. Choose based on your primary goal, and always double check your pinion angle before the final weld.

The Support System: Bellhousings, Clutches, and Hydraulics

Once you’ve cleared the space in your transmission tunnel, you must address the components that actually transfer the torque. The t56 magnum features a heavy duty 26-spline input shaft, which is a significant upgrade over the 10-spline shafts found in vintage Muncie or Toploader gearboxes. This means your old clutch disc is officially obsolete. You’ll need a modern clutch kit designed for high clamping force to match the 700 lb-ft rating of the transmission. Pair this with an SFI-rated steel bellhousing; it’s a critical safety measure for high-RPM builds, acting as a shield if a clutch ever fails under extreme load.

Speedometer integration is one area where this gearbox truly shines. Unlike many modern transmissions that only offer electronic signals, the Magnum provides both a mechanical cable drive and an electronic speed sensor. This allows you to keep your nostalgic 1960s dashboard functional or transition to a modern digital display without buying expensive adapters. It’s a small detail that saves hours of frustration during the wiring phase of your restoration. If you’re feeling overwhelmed by these technical choices, our recommended gear page lists the specific adapters and cables we’ve tested in the field.

Hydraulic Clutch Conversion Basics

Ditch the old mechanical Z-bar linkage. It’s bulky, prone to binding, and often interferes with long-tube headers. A modern hydraulic throwout bearing provides a consistent, light pedal feel that makes a 6-speed feel like a contemporary performance car. For a successful swap, you’ll typically need a 3/4-inch or 7/8-inch bore master cylinder to ensure the correct stroke. Bleeding these systems can be tricky, so always use a remote bleeder line that extends outside the bellhousing. This allows you to clear air from the system without crawling under the car for every pump of the pedal.

Electrical Connections and Reverse Lockouts

The electrical side of the install is straightforward but non-negotiable for safety. You’ll find a reverse lockout solenoid on the tailshaft which requires a 12V signal to allow the shifter to move into the reverse gate. Without this solenoid wired to a brake switch or a dedicated controller, you’ll find it nearly impossible to shift into reverse; conversely, an unpowered solenoid can make it too easy to hit reverse when aiming for fifth. The reverse lockout solenoid is the primary safeguard that prevents high-speed shifting errors from turning into a catastrophic mechanical failure. Finally, ensure your speed sensor is pinned correctly for your EFI system to maintain a stable idle when rolling to a stop. If you’re looking for a complete roadmap for your drivetrain, consider investing in our The Ultimate Restomod Guide to see how these systems integrate into a professional-level build.

Is the T56 Magnum Worth the Investment in 2026?

Every builder eventually faces the buy once, cry once dilemma. With retail prices for a new t56 magnum ranging from $3,545.00 to $4,694.99 as of May 2026, it is a significant line item in any restoration budget. However, you have to look beyond the initial invoice. A rebuilt salvage-yard T56 might save you $1,500 upfront, but it won’t offer the 700 lb-ft torque capacity or the peace of mind that comes with zero-mile internals. In the high-stakes world of custom builds, reliability is the ultimate currency. You’re investing in a component that eliminates the weak link in your drivetrain, allowing you to enjoy your car rather than constantly wrenching on a fragile gearbox.

The financial return on this investment often reveals itself at the gas pump and on the auction block. The double-overdrive gears are a strategic advantage for engine longevity; dropping your highway cruising speed by 300 to 500 RPM reduces friction and heat. This efficiency makes your classic practical for 2026-style road trips across the country. More importantly, the market recognizes quality. A t56 magnum is a hallmark of a premium build. When it’s time to sell, having this specific transmission in your spec sheet often commands a price premium that far exceeds the original cost of the unit. It signals to potential buyers that you didn’t cut corners on the most important mechanical interface in the car.

Magnum vs. TKX: 6-Speeds vs. 5-Speeds

There are scenarios where the t56 magnum might be overkill for your project. If you’re working with a very tight transmission tunnel and don’t want to engage in extensive metal fabrication, the TREMEC TKX 5-speed is a formidable alternative. The TKX is more compact and carries a 600 lb-ft torque rating, which is plenty for most naturally aspirated street cars. However, if you crave that extra overdrive gear for high-speed interstate cruising or if your engine pushes toward that 700 lb-ft ceiling, the 6-speed remains the king. The extra gear isn’t just about fuel; it’s about having the perfect ratio for every corner on a backroad.

Planning Your Purchase

Availability in May 2026 remains steady, but lead times for specific conversion kits can still fluctuate between four and eight weeks. Don’t wait until your engine is on the hoist to place your order. Start by defining your goals and ensuring your chassis can handle the power. If you’re still in the early phases of your build, read our guide on what is a restomod to align your transmission choice with your overall project vision. Once you’re ready to commit, join our community at the Restomod Academy for the consulting services and blueprints you need to finish your project with professional results.

Take Command of Your Drivetrain Evolution

You’ve navigated the technical landscape of gear ratios and fitment challenges, and you’re now equipped to make an informed decision for your project. Choosing a t56 magnum is more than just a gearbox swap; it’s the definitive upgrade that ensures your classic car can handle modern power while maintaining civil highway manners. By prioritizing a 700 lb-ft torque capacity and selecting the right hydraulic support systems, you’re building a legacy of performance that will endure for decades. This isn’t just about speed; it’s about the precision of every shift and the confidence that your drivetrain can withstand whatever the road throws at it.

Success in the garage comes from preparation and a commitment to quality. To ensure your installation goes smoothly from the first cut to the final test drive, Download The Ultimate Restomod Guide to plan your transmission swap. You’ll gain access to expert guidance from seasoned builders and premium project blueprints that take the guesswork out of complex fabrication. You have the vision to blend vintage soul with contemporary technology. Now, it’s time to get to work and transform your car into the performance machine it was always meant to be.

Frequently Asked Questions

How much torque can a T56 Magnum actually handle?

Every t56 magnum is factory rated to handle a maximum of 700 lb-ft of torque. This capacity is a verified specification that provides a massive safety cushion for high performance crate engines. Whether you’re running a supercharged LT4 or a high displacement big block, this transmission is engineered to take the abuse of aggressive launches and track days without internal failure.

What is the difference between a T56 and a T56 Magnum?

A standard T56 is an older OEM unit found in donor cars like the 4th gen Camaro, whereas the Magnum is a purpose built aftermarket evolution of the TR-6060. The newer unit features larger gears, stronger shafts, and triple cone synchronizers that the original T56 lacks. It also offers three shifter locations to help you fit the gearbox into various classic chassis configurations.

Will a T56 Magnum fit in a first-generation Mustang without cutting?

No, fitting this transmission into a first generation Mustang almost always requires cutting and widening the transmission tunnel. The case is significantly larger than the original Toploader or T5 units found in 1964 to 1973 Fords. You’ll need to use a specialized tunnel patch kit or fabricate custom sheet metal to ensure the gearbox clears the floorpan while maintaining proper driveline angles.

Do I need a hydraulic clutch for a T56 Magnum swap?

While you can technically adapt a mechanical linkage, a hydraulic clutch is the superior choice for most restomod projects. Mechanical Z-bars often interfere with long tube headers and require significant fabrication to align correctly with the modern bellhousing. A hydraulic throwout bearing simplifies the engine bay and provides a consistent, light pedal feel that makes the car much easier to drive in traffic.

What rear-end gear ratio works best with a T56 Magnum?

A 3.73 or 4.11 rear end ratio typically provides the best balance of acceleration and highway cruising for this six speed. If you choose the 2.66 close ratio model, a 4.11 gear helps keep the engine in its power band. For those using the 2.97 wide ratio version, a 3.55 or 3.73 gear is often ideal to maximize the benefit of the double overdrive sixth gear.

Can I use my existing mechanical speedometer with a T56 Magnum?

Yes, the unit includes a dedicated mechanical speedometer drive alongside an electronic sensor. This dual capability allows you to retain your factory 1960s or 70s cable driven speedometer without needing an expensive external signal converter. You’ll simply need the correct speedometer gear and a compatible cable to ensure your dashboard remains accurate while you enjoy modern performance.

What is the weight of a TREMEC T56 Magnum?

The t56 magnum weighs approximately 135 pounds without fluid or a bellhousing. This is roughly 35 pounds heavier than a vintage four speed Muncie, but it’s a manageable trade off for the massive increase in strength and the addition of two overdrive gears. When planning your build, ensure your transmission jack is rated for this weight to ensure a safe and steady installation process.

Is the T56 Magnum better than a built 4L60E for a restomod?

The manual gearbox is the better choice for drivers who prioritize engagement and ultimate strength over automatic convenience. While a built 4L60E can handle up to 500 lb-ft, it rarely matches the 700 lb-ft ceiling of the Magnum. The six speed also offers a wider range of gear ratios, allowing for better acceleration and lower highway RPMs compared to the older four speed automatic.
