TREMEC TKX vs T56 Magnum: Choosing the Perfect Gearbox for Your Restomod

You might assume that a six-speed is the ultimate upgrade for your classic muscle car, but the extra gear could cost you the original integrity of your floor pan. Deciding on a tremec tkx vs t56 magnum is one of the most critical turning points in any restomod project. You want that modern, crisp shifting feel and the ability to cruise at highway speeds, but you shouldn’t have to sacrifice your car’s vintage soul or its original sheet metal to get there. It’s a common worry that high-horsepower LS or Coyote builds will tear through a lesser gearbox, leading many builders to over-buy without considering the consequences of fitment.

I will help you determine which of these high-performance gearboxes aligns with your chassis limits, torque requirements, and the specific way you intend to drive. We will explore the physical dimensions that dictate whether you’ll need a torch and a welder, compare the 600 lb-ft and 700 lb-ft torque ratings, and look at the gear ratios that turn a project into a masterpiece. By the time we’re done, you’ll have a clear roadmap for the supporting parts you need and the confidence to choose the right transmission for your build.

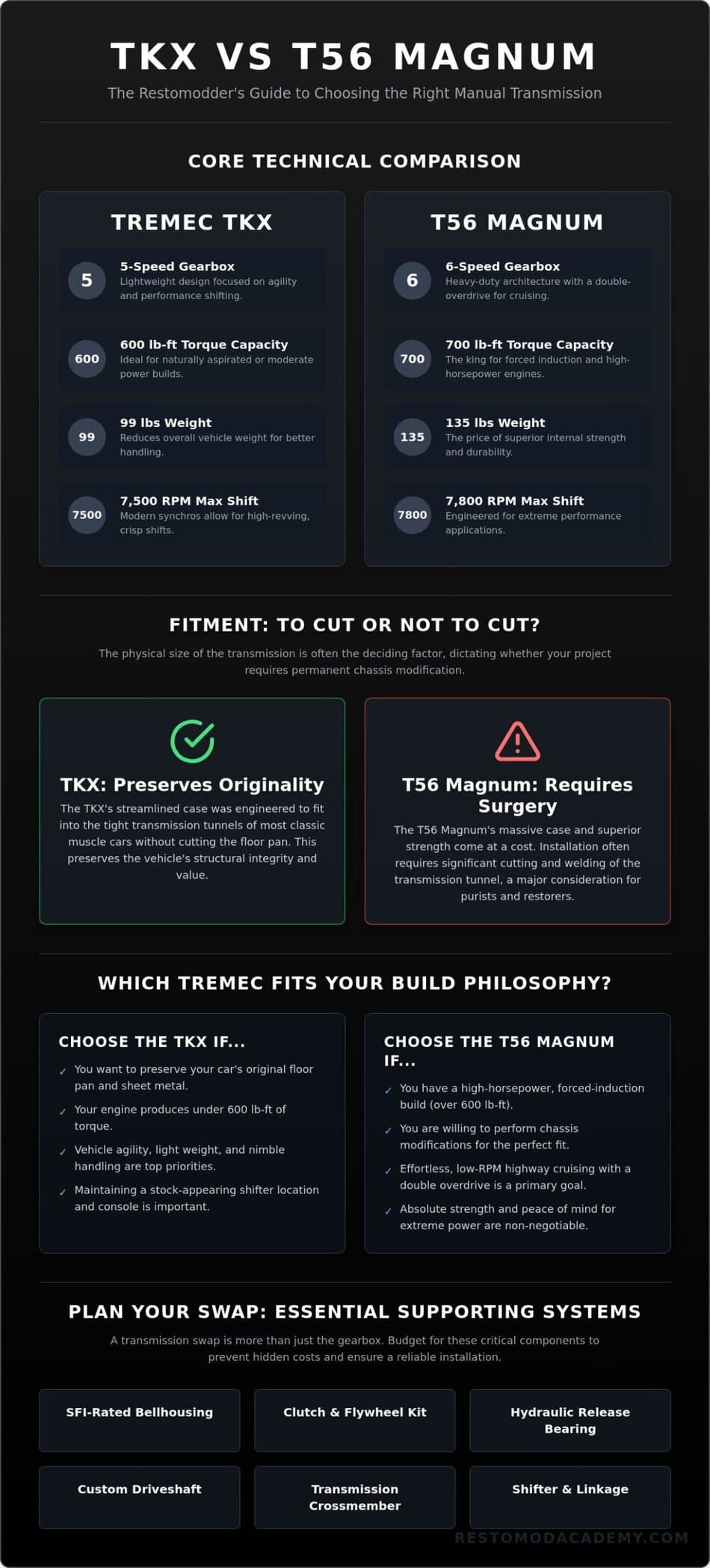

TREMEC TKX and T56 Magnum: The Core Technical Comparison

The history of the TREMEC Corporation is a story of constant evolution. For decades, builders had to choose between the fragile T-5 and the massive T-56. Today, the debate over tremec tkx vs t56 magnum represents the pinnacle of manual transmission technology for the restomod community. One is a lightweight, high-revving 5-speed designed to slip into classic tunnels, while the other is a heavy-duty 6-speed beast capable of surviving brutal power levels. Understanding these units starts with their physical presence under the car.

Weight matters in a balanced build. The TKX weighs in at a lean 99 pounds, making it a favorite for those prioritizing agility and ease of installation. In contrast, the T56 Magnum tips the scales at 135 pounds. That extra mass isn’t just dead weight; it’s the price of admission for a double-overdrive architecture and superior internal strength. If you are building a corner-carving machine where every pound counts, the 5-speed has a distinct advantage.

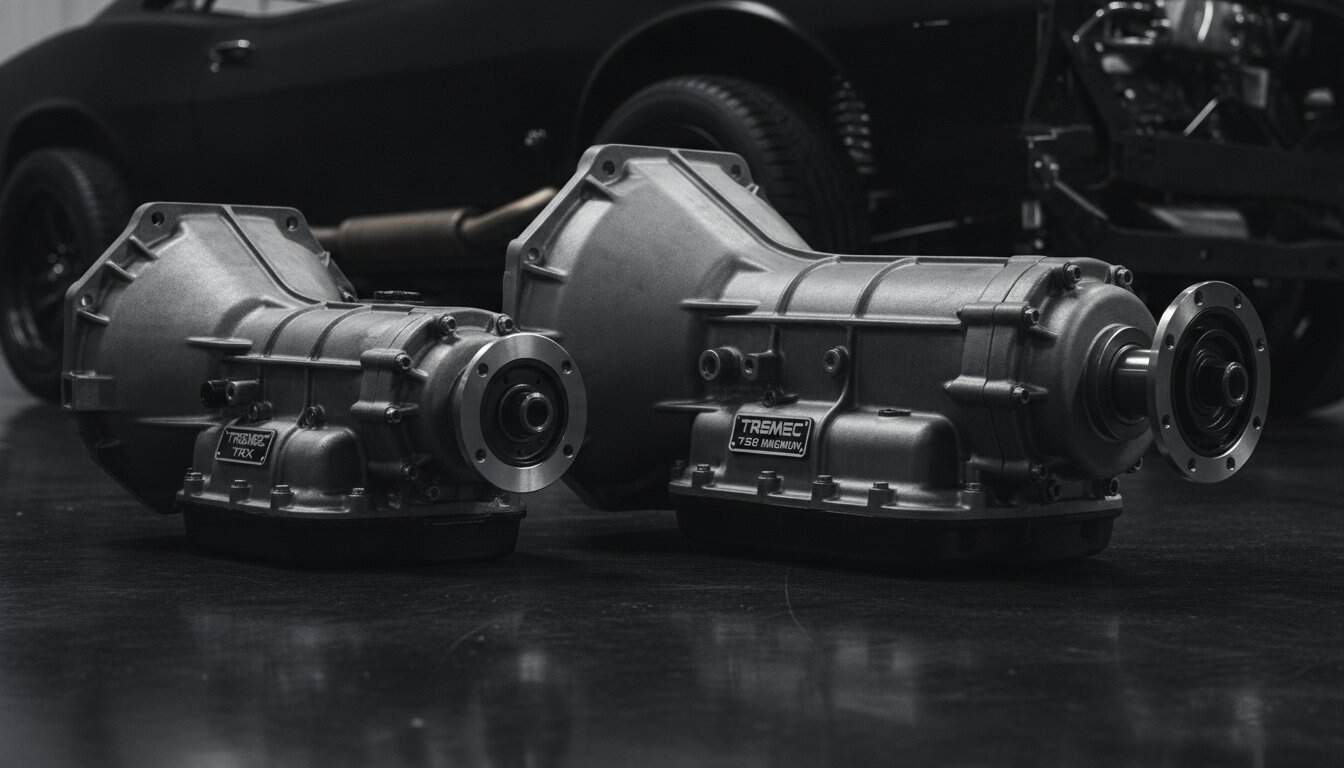

To see these gearboxes side by side and understand their physical presence, watch this helpful comparison:

Torque Capacity and Power Handling

The internal architecture of these units tells two different stories. The TKX uses a streamlined three-rail internal shift system and high-grade steel to handle 600 lb-ft of torque comfortably. It’s the perfect companion for a naturally aspirated small block or a healthy crate engine. However, the T56 Magnum remains the undisputed king for forced induction. With a 700 lb-ft rating and massive gears, it offers the safety margin needed for twin-turbo LS builds or high-boost Coyote swaps. If you plan on punishing your car at the track, that extra 100 lb-ft of capacity provides vital peace of mind. Both units feature modern synchronizer technology, allowing the TKX to shift at 7,500 RPM and the Magnum at 7,800 RPM.

Gear Ratios and Overdrive Percentages

Choosing your gear count is about more than just having an extra click on the shifter. The T56 Magnum provides a double-overdrive setup, often featuring a deep sixth gear that drops RPMs significantly for effortless highway cruising. The TKX offers multiple 5th gear ratios, ranging from 0.68 to 0.81, allowing you to tailor the car’s personality. You must match these to your rear-end ratio. A 3.73 rear gear paired with a 0.68 TKX 5th gear creates a versatile machine, but a Magnum with a 0.50 sixth gear can turn a high-strung engine into a silent highway traveler. For more detailed insights on performance components, check out our product reviews section.

Fitment and Chassis Modification: To Cut or Not to Cut

Choosing between a tremec tkx vs t56 magnum often comes down to how much you value your car’s original sheet metal. While the T56 Magnum offers incredible strength, its massive case often forces a confrontation with a cutting wheel. If you’re working on a classic A-body, F-body, or Mustang, the space between the floor pan and the engine block is unforgiving. You must decide if the extra gear is worth the structural surgery required to make it fit. Pick up your tape measure before you pick up your credit card; the physical reality of your transmission tunnel will dictate your build path more than any spec sheet ever could.

The TKX Solution for Tight Transmission Tunnels

The TKX was a gift to the restoration community. It was engineered specifically to solve the fitment issues that plagued its predecessor, the TKO. By rounding the top of the case and streamlining the shift rail system, TREMEC created a 5-speed that slides into most 1960s and 1970s muscle cars without touching the floor pan. This preservation of the factory metal is essential for maintaining the vehicle’s structural integrity and heritage. According to Holley’s technical comparison, the TKX’s compact dimensions allow for multiple shifter locations. This flexibility means you can keep your factory console and shifter handle in their original positions, hiding the modern performance beneath a stock appearance. If you’re mapping out a complex project, our restomod consulting services provide the technical clarity you need.

Modifying for the T56 Magnum

Step into the world of the T56 Magnum and you must be prepared for serious fabrication. The large tail housing and wide mid-section of this 6-speed usually require you to cut out the existing transmission hump and weld in a larger, aftermarket tunnel. This modification impacts everything in your interior. Your factory carpet won’t fit properly, and your center console will likely need custom upholstery or complete replacement to hide the new, taller floor profile. Beyond aesthetics, cutting into the floor pan can compromise the rigidity of the cabin if not reinforced correctly. Always use a template and consider the impact on the seat brackets and seat belt mounting points. While the strength of the Magnum is legendary, the labor involved in the swap is significantly higher than a drop-in 5-speed solution. Don’t let the excitement of a 6-speed blind you to the weeks of metalwork and interior reconstruction that follow.

Driving Experience: High-RPM Shifting and Highway Cruising

The sensory reward of a perfect gear change is what makes a manual transmission the heartbeat of a restomod. When weighing the tremec tkx vs t56 magnum, you’re choosing between two distinct personalities behind the wheel. The TKX brings a level of refinement that was missing from older five-speed units. It utilizes multi-cone synchronizers and hybrid friction materials that allow for buttery smooth engagement even when the tachometer is climbing toward the redline. This evolution in internal design means you can say goodbye to the notchy feel of vintage gearboxes and the high-RPM lockout issues of the past.

The T56 Magnum offers a different kind of satisfaction. It provides a heavy-duty, bolt-action precision that feels like it belongs in a modern supercar. Every throw is short and definitive. While it’s a larger unit, the shift effort is remarkably low thanks to its triple-cone synchronizers on the first four gears. Both units have significantly improved noise, vibration, and harshness (NVH) levels compared to original 1960s transmissions. You’ll notice a quieter cabin and a lack of that vintage gear whine that often plagues older mechanical systems, allowing the sound of your exhaust to take center stage.

The High-RPM Advantage of the TKX

Don’t let the simplicity of a five-speed fool you. The TKX is a high-performance athlete capable of clean shifts at 7,500 RPM. This makes it the ideal partner for high-revving naturally aspirated builds, such as a built small block or a modern Coyote crate engine. It solves the shifting frustrations that builders faced for years with older tech. You can push your engine to the very limit of its power band with total confidence that the next gear will be waiting for you without hesitation or grinding.

Cruising Efficiency with the T56 Magnum

If your goal is to cross state lines without deafening your passengers, the T56 Magnum is the superior tool. Its double-overdrive architecture allows for incredible RPM drops in sixth gear. Imagine cruising at highway speeds while your engine hums at a relaxed 1,800 RPM. This reduction in engine speed doesn’t just save fuel; it dramatically reduces wear on your rotating assembly. For those planning a modern powertrain swap to create a long-distance touring machine, check out our guide to LS engine swaps to see how a six-speed complements modern EFI power. Lower cruising speeds lead to a more civilized driving experience, turning a raw muscle car into a capable grand tourer.

Support Systems and Hidden Costs of the Swap

The price tag on the crate is just the beginning of your financial journey. When evaluating the tremec tkx vs t56 magnum, you must account for the ecosystem of parts required to make the drivetrain functional and safe. Both units represent a shift away from vintage mechanical linkages toward modern hydraulic clutch release systems. This transition requires a master cylinder, a hydraulic throwout bearing, and high-pressure lines. While this adds to the initial cost, the reward is a consistent pedal feel that won’t leave your left leg exhausted after a weekend cruise.

Safety should always lead your design choices. If your build pushes high horsepower, an SFI-rated steel bellhousing is a non-negotiable requirement. It provides a layer of armor between the rotating assembly and your feet. While factory aluminum housings are lighter and cheaper, they lack the containment rating needed for high-performance applications. Additionally, your driveline geometry will shift. You will likely need to shorten your driveshaft and source a specific slip yoke to match the output splines of these modern units. Precision is key here; incorrect driveline angles lead to vibrations that can ruin the driving experience you’ve worked so hard to create.

Clutch and Flywheel Selection

Select a clutch that matches the torque capacity of your transmission and the power of your engine. A clutch with too little holding power will slip under load, while one that is too aggressive will make street driving a chore. Ensure your pilot bearing fitment is perfect to prevent input shaft wear. For a deeper dive into drivetrain alignment and engine mounting, refer to the definitive guide to an LS engine swap. Getting these measurements right early prevents expensive failures later.

Speedometer Calibration and Electronic Interface

Modern TREMEC units offer flexibility in how you track your speed. The TKX often features both mechanical and electronic speedometer outputs, making it easier to retain your vintage gauges. The T56 Magnum typically relies on an electronic signal. You’ll also need to wire the reverse light switch and the neutral safety switch to ensure your car remains street legal and safe to start. If you want to avoid the headache of cable routing and calibration, consider a GPS-based speedometer system. To master every detail of your build from the ground up, explore The Ultimate Restomod Guide for a complete project roadmap.

Final Verdict: Which TREMEC Fits Your Build Philosophy?

Choosing between the tremec tkx vs t56 magnum is a decision that defines the soul of your restomod. It is easy to get caught up in the “more is better” mentality, assuming that six gears are inherently superior to five. However, a seasoned builder knows that the best gearbox is the one that disappears into the driving experience rather than one that creates constant compromises. Your choice should reflect the architectural limits of your chassis and the actual torque output of your engine. Prioritize the joy of a finished, drivable car over a spec sheet that requires you to cut apart a piece of automotive history.

Remember that the satisfaction of a restomod comes from the precision of the assembly and the reliability of the system as a whole. Whether you are aiming for a period-correct interior with modern internals or a ground-up pro-touring monster, the transmission is the bridge between your mechanical labor and the open road. Don’t rush this stage of the project. Take the time to measure your tunnel, calculate your final drive ratios, and be honest about how you will actually use the vehicle.

The Case for the TKX in Most Restomods

For roughly 90 percent of street-focused builds, the TKX is the logical and most rewarding choice. It offers a 600 lb-ft torque capacity that easily handles most crate engines while weighing only 99 pounds. By choosing the five-speed, you save yourself the labor and expense of floor pan fabrication, allowing you to allocate those resources toward better suspension or interior upgrades. It provides the perfect balance of modern high-RPM shifting and highway cruising without the bulk of a six-speed. If you are ready to begin the installation, check out our recommended gear for the specific tools and alignment equipment needed for a professional-grade swap.

When to Step Up to the T56 Magnum

The T56 Magnum is the non-negotiable choice for builds that push into the extreme. If you are dropping in a supercharged LT4 or a twin-turbo Coyote engine, the 700 lb-ft rating and massive internals of the Magnum provide the necessary durability. It is the tool for the long-distance tourer who demands the absolute lowest cruising RPM possible. While the 135-pound weight and larger dimensions require more work, the mechanical precision of the double-overdrive is unmatched for high-horsepower applications. To ensure every part of your drivetrain is synchronized with your vision, start your project with The Ultimate Restomod Guide. This resource will help you navigate the complexities of a tremec tkx vs t56 magnum swap and ensure your build stands the test of time.

Launch Your Project with Mechanical Precision

You now have the technical foundation to decide which gearbox belongs in your tunnel. Whether you choose the compact, high-revving TKX to save your floor pan or the heavy-duty T56 Magnum for its double-overdrive strength, your decision determines how your car will feel on the open road. Success lies in the meticulous details of the supporting systems, from the hydraulic clutch to the precise driveline angles. The debate of tremec tkx vs t56 magnum isn’t just about gear count; it is about aligning your mechanical choices with your build philosophy.

Precision in the workshop leads to pride on the pavement. To ensure every phase of your restoration meets the highest standards of safety and style, Master your build with The Ultimate Restomod Guide. Authored by Brook Walsh, this resource provides step-by-step project blueprints that bridge the gap between vintage aesthetics and modern reliability. Your project is more than a collection of parts; it is a testament to your vision and labor. Take your time, measure twice, and enjoy the process of creating a machine that will perform for decades to come.

Frequently Asked Questions

Do I need to cut my floor to fit a TREMEC TKX?

You don’t need to cut your floor pan to fit a TKX in most classic muscle cars. TREMEC specifically engineered this five-speed with a rounded, low-profile case to clear the tight transmission tunnels of 1960s and 1970s vehicles. While the older TKO often required surgical modifications, the TKX allows you to preserve your factory sheet metal while gaining modern performance. Always verify clearances around the shifter opening, but expect a much simpler installation than with larger units.

What is the torque limit for the TREMEC T56 Magnum?

The TREMEC T56 Magnum is rated to handle up to 700 lb-ft of torque. This robust capacity makes it the premier choice for forced induction builds or high-displacement engines that demand maximum durability. When comparing the tremec tkx vs t56 magnum, this 100 lb-ft advantage provides a significant safety margin for track-focused machines. It’s built with massive gears and a heavy-duty architecture to ensure your drivetrain survives the most punishing street and strip conditions.

Can I use my factory mechanical clutch with a T56 Magnum?

You cannot use a factory mechanical Z-bar linkage with a T56 Magnum without extensive custom fabrication. These modern transmissions are designed to work with hydraulic clutch release systems, which offer a more consistent and lighter pedal feel. Transitioning to a hydraulic setup involves installing a master cylinder and a concentric slave cylinder. This upgrade modernizes your driving experience and eliminates the geometry issues often found with vintage mechanical linkages in restomod projects.

How much heavier is the T56 Magnum compared to the TKX?

The T56 Magnum is 36 pounds heavier than the TKX. The TKX weighs a lean 99 pounds, whereas the T56 Magnum tips the scales at 135 pounds. This weight difference is a direct result of the Magnum’s larger gears and its double-overdrive internal architecture. For builders focused on weight distribution or agility, the 5-speed offers a lighter alternative that’s easier to manage during installation while still providing substantial power-handling capabilities.

Which TREMEC transmission is best for an LS swap?

Choosing between a tremec tkx vs t56 magnum for an LS swap depends entirely on your power goals and chassis constraints. If you’re building a street-cruiser with a naturally aspirated LS3, the TKX is often the better choice because it fits without tunnel modifications. However, if you’re running a supercharged or twin-turbo LS making over 600 lb-ft of torque, the T56 Magnum is the necessary step up for long-term reliability.

Does the TKX shift better at high RPM than the old TKO?

Yes, the TKX offers a massive improvement in high-RPM shifting over the older TKO series. It features multi-cone synchronizers and hybrid friction materials that allow for clean, crisp shifts at engine speeds up to 7,500 RPM. This solves the notorious third-gear lockout issue that frustrated TKO owners for years. If you enjoy pushing your engine to the redline, the TKX provides the mechanical precision needed to stay in the power band without hesitation.

What driveshaft changes are needed for a TKX swap?

You’ll likely need to shorten and re-balance your driveshaft when swapping to a TKX. The overall length of the transmission and the location of the output shaft rarely match vintage four-speed or automatic units perfectly. Additionally, you must source a 26-spline input shaft clutch and a 31-spline output yoke to match the TKX’s heavy-duty internal components. Take precise measurements after the transmission is mounted to ensure your driveline angles remain within the recommended three-degree limit.

Is the 6th gear in a T56 Magnum worth the extra cost and weight?

The 6th gear in a T56 Magnum is worth the investment if you prioritize long-distance touring and highway efficiency. That second overdrive gear allows you to maintain high speeds at significantly lower engine RPMs, which reduces cabin noise and engine wear. If your project involves cross-country trips, the extra gear count is a game-changer. However, if you mostly drive locally, the lighter weight of a 5-speed might be more practical for your needs.
